ROFO 450 ECO
The core in narrow web
The ROFO 450 ECO is specifically developed as a core model for narrow web embellishment processes of printed and non-printed web substrates. This makes it the perfect solution for the fundamentals of label production and packaging printing. The ROFO 450 ECO is designed to process pressure sensitive materials (adhesive labelstock), paper, cardboard, plastic film, and composite substrates. It provides reliable and qualitative hot foil stamping and embossing results.
- Speeds of up to 18’000 strokes/hour and 120m/min
- Dynamic foil web transport
- 90 degrees rotating foiling unit
- Proven flat-flat principle
- Large stamping area of 430 x 610 mm
- High stamping force of up to 100 metric tons
Next generation machine user interface (GUI)
The newly developed interface features a touch optimized screen with self-explanatory icons and controls. Higher security and easy learning trough context-sensitive real time help is available. The Intuitive instructions for hands on training, can reduce familiarization time for new operators. If requested, a quick remote support by the Gietz Service Helpdesk is possible.
Dynamic foil web transport
The press features a dynamic foil web transport for up to 2 foil feeds. The 90 degrees rotating foiling unit allows for the foils to be run along with or transverse to the substrate web running direction. The friction un- and rewinders allow the use of single or multiple webs and thus offer maximum application flexibility.
Ergonomic and optimized design to reduce setup time

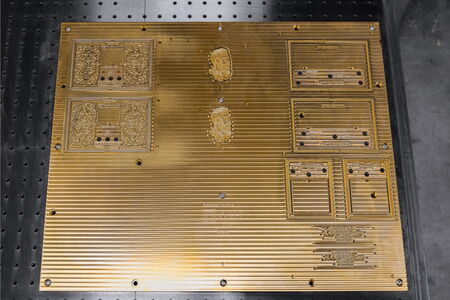

The user-friendly design of the machine makes set-up and change over straightforward. The setting of dies and counterparts is easy, without any disconnection of the substrate web. Perfect make-ready possibilities are accessible underneath the counter plate. The changing of foils is user-friendly and handled conveniently on top of the machine.

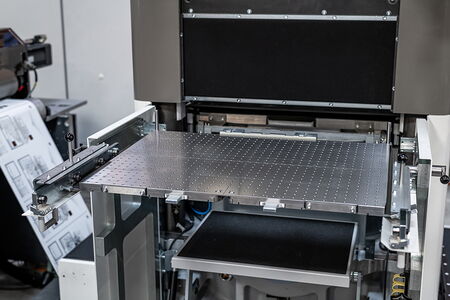

Large stamping surface
The large stamping surface of 430 x 610 mm / 16.9“ x 24“ allows for a huge range of application possibilities, coping 1:1 with the print repeat.
Standalone or inline operation
The unit can be supplied for incorporation into all current and established narrow web printing / converting / finishing machines or with own substrate web unwind device and rewind device / cross cutter to run as a stand-alone finishing system.
