ROFO 1020 PLUS

The versatile in web processing

Meeting the needs of wider web customers and offering the well-known Gietz strengths of high-quality hot foil stamping, embossing and hologram application. The Gietz ROFO 1020 PLUS was specially developed based on market requirements for wider solutions following the ROFO 910 PLUS.

Key benefits

  • Web speed up to 130 m/min
  • Extended stamping area
  • High performance foil transportation system VACUFOIL
  • Dwell time
  • Efficiency
  • Modular system
  • Longitudinal and transverse foil feed
  • Up to 11 foil webs
  • Hologram application technology

Special Features

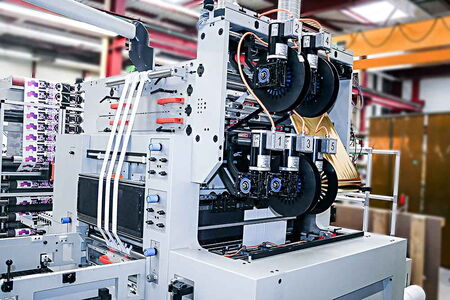

VACUFOIL

  • Longitudinal or transverse foiling operation
  • Suction channel frames with loop sensors to house the foil before pulling
  • Suction board at press entry for foil web tension control
  • Pneumatic vacuum device at press exit with adjustable blowing nozzles for foil separation
  • Air cushion shafts to better support the foil travel
  • Air induced draft fans with aspiration pipes to generate the vacuum

Machine extensions

The standard machine can be extended by a second stamping station for hot foil stamping and blind embossing. Another possibility is to add a web sheeter or different substrate un- and rewind solutions as well as other machine components.

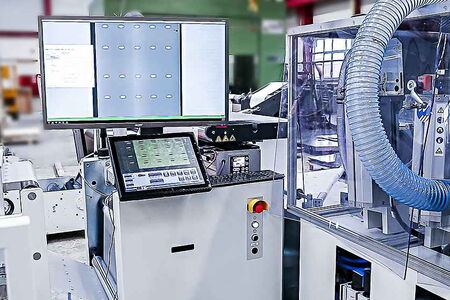

Visualisation and inspection equipment

  • A single camera video system for print quality monitoring can be supplied
  • For inspection and observation of the quality of high gloss reflecting foil stamped areas, a state of the art system for fault detection based on incremental reading is available. This works also for hologram application in security applications

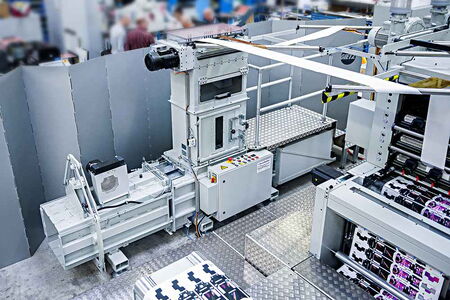

Baling press for foil waste

  • High capacity baling press for waste foil
  • The foil waste drive is located outside the machine, offering a clean and time saving solution

Hologram application

  • The hologram foil is unwound using the VACUFOIL foil transportation system
  • The foil tension of each hologram foil web is individually adjustable

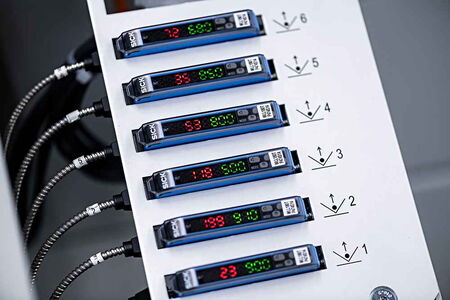

  • The register mark detection happens inside the press or at the entry to the press
